Automated E2E Testing with Neon Branching and Cypress

Running end-to-end (E2E) tests can be challenging when the database schema changes frequently. Tests that rely on a specific schema can fail or produce inconsistent results when run against a shared database environment, creating a bottleneck for development teams.

Neon's database branching helps solve this by providing an isolated database for each feature branch, similar to how Git manages code branches. This guide shows you how to integrate Neon's database branching with Cypress and GitHub Actions to build an automated testing pipeline.

You will use a Next.js Todo application to configure a workflow that triggers on every pull request. This workflow will:

• Create a new, isolated database branch from your main branch.
• Run schema migrations on the new database branch.
• Build the application and connect it to the new branch.
• Execute the Cypress test suite against the running application.
• Post a summary of schema changes to the pull request.
• Record test results, uploading screenshots and videos as artifacts in GitHub for any failures.
• On merge, apply migrations to the main (production) branch and delete the temporary database branch.

This process ensures that database-dependent E2E tests are run in a clean, predictable environment for every proposed change, improving the reliability of your test suite.

Prerequisites

• A Neon account
• A GitHub account
• Node.js installed locally on your machine

Setting up your Neon database

1. Create a new Neon project from the Neon Console. For instructions, see Create a project.

2. Navigate to your project dashboard page and copy your database connection string by clicking the Connect button.



   Your connection string will look something like this:

   postgres://[user]:[password]@[neon_hostname]/[dbname]?sslmode=require&channel_binding=require

Set up the project

This guide uses a Next.js application with Cypress, but the core principles of database branching can be applied to other technology stacks and testing frameworks.

We'll start with a pre-configured example repository that includes a simple Todo app, a Drizzle ORM schema, and a Cypress test suite.

1. Clone the repository and install its dependencies:

   git clone https://github.com/dhanushreddy291/neon-cypress-example
   cd neon-cypress-example
   npm install
   cp .env.example .env

2. Open the .env file and add the Neon database connection string you copied earlier.

3. Apply the initial schema migrations to your production database branch:

   npm run db:migrate

4. Start the development server to verify the application is working:

   npm run dev

5. In a new terminal, run the Cypress tests locally to confirm they pass (ensure the Next.js development server is still running):

   npm run cypress:open

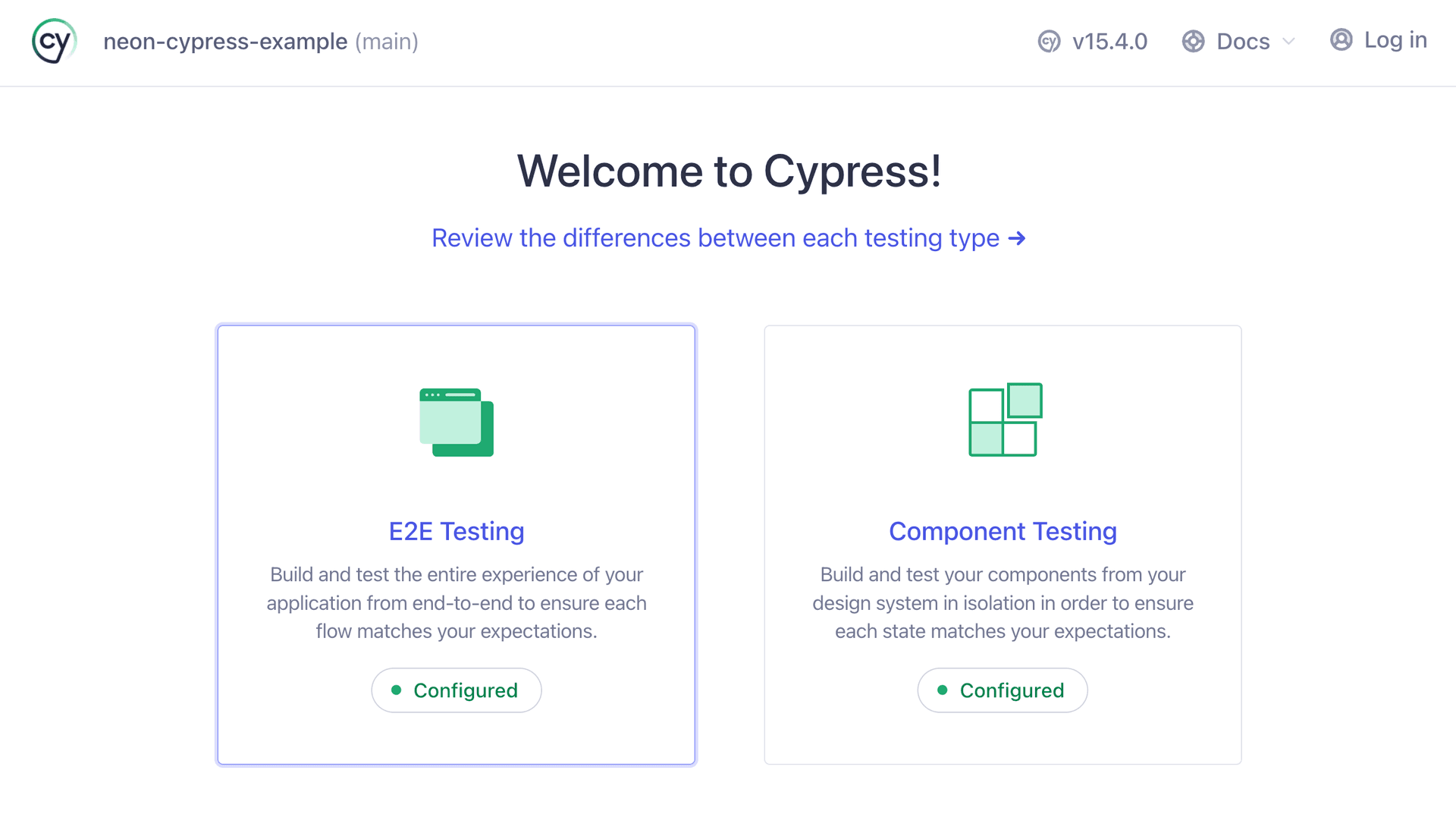

   This command opens the Cypress Test Runner. Select E2E Testing, choose a browser, and click the todos.cy.ts file to execute the test suite.



   Select E2E Testing



   Choose a browser: (e.g., Chrome)

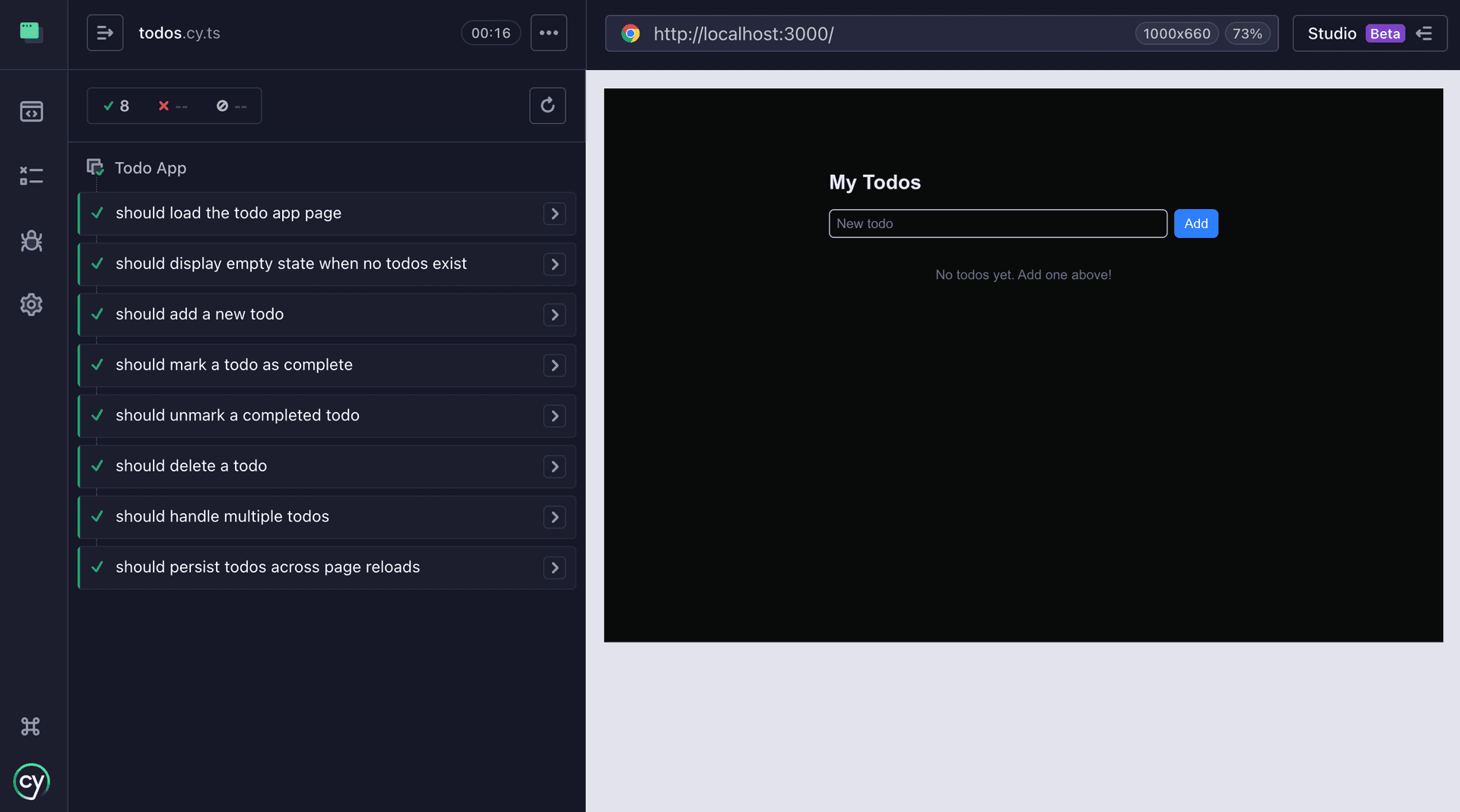

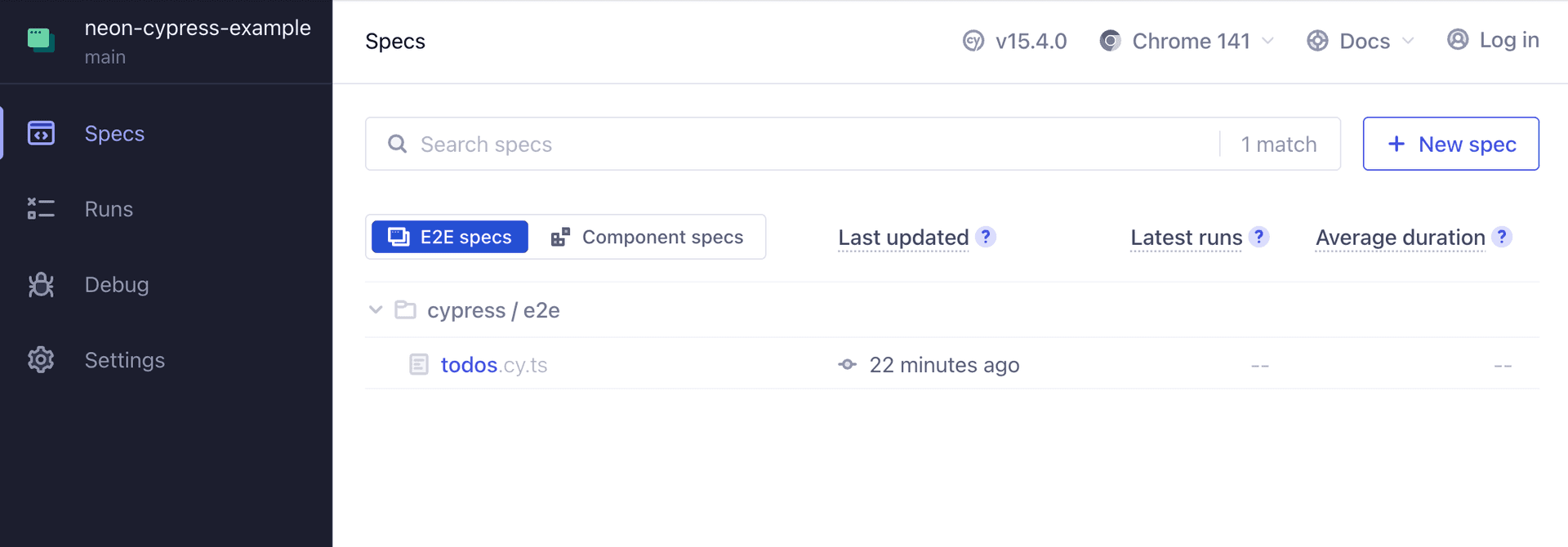

   Click the todos.cy.ts file to run the tests.



   All tests should pass successfully.

6. Initialize a new Git repository and push your code to GitHub:

   For instructions on creating a new repository on GitHub, see Creating a new repository.

   rm -rf .git
   git init
   git add .
   git commit -m "Initial commit"
   git branch -M main
   git remote add origin <YOUR_GITHUB_REPO_URL>
   git push -u origin main

   With the project code on GitHub, you can now connect it to your Neon project.

Set up the Neon GitHub integration

The Neon GitHub integration securely connects your Neon project to your repository. It automatically creates a NEON_API_KEY secret and a NEON_PROJECT_ID variable in your repository, which are required for your GitHub Actions workflow.

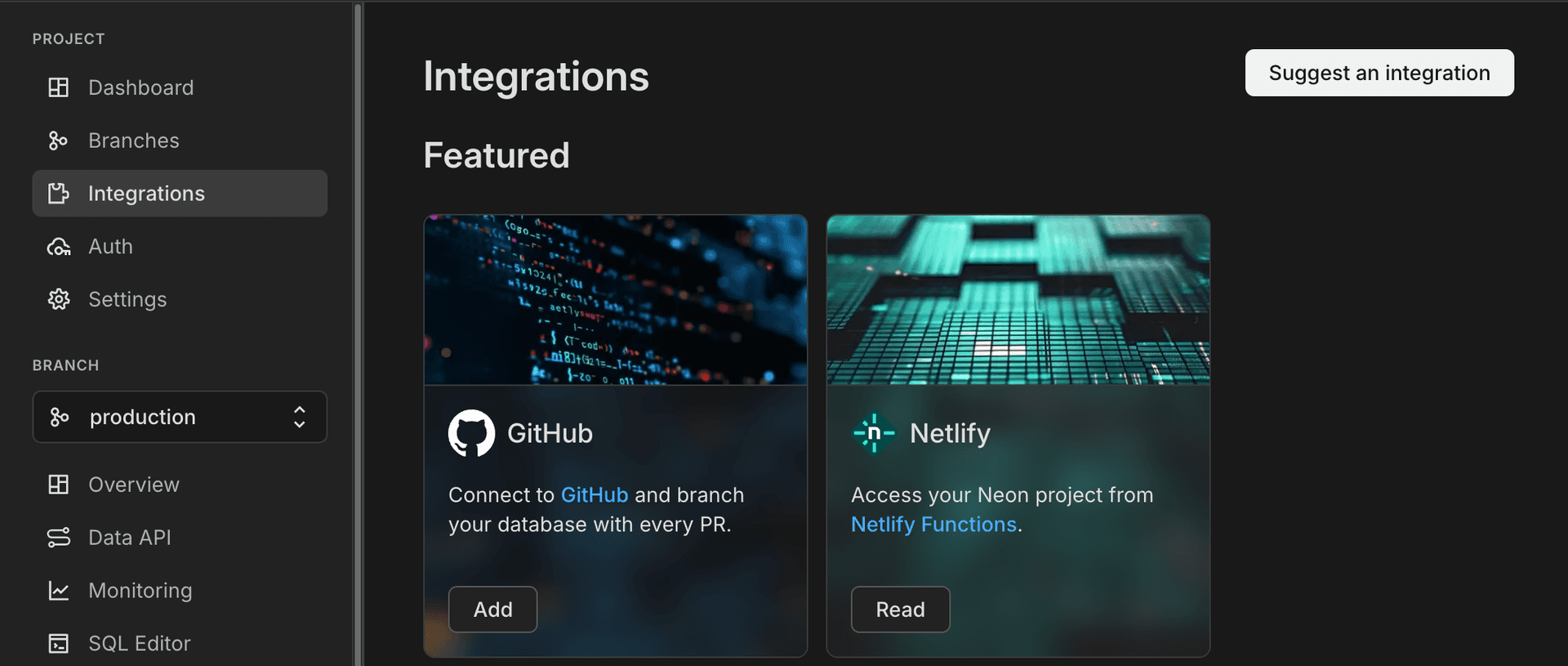

1. In the Neon Console, navigate to the Integrations page for your project.

2. Locate the GitHub card and click Add.

3. On the GitHub drawer, click Install GitHub App.

4. If you have more than one GitHub account, select the account where you want to install the GitHub app.

5. Select the GitHub repository to connect to your Neon project, and click Connect.

6. Add Production Database Secret:

   • Navigate to your GitHub repository's Settings > Secrets and variables > Actions.
   • Create a new repository secret called DATABASE_URL.
   • Paste the connection string for your production branch (copied from the Neon Console).
   • Note that the NEON_API_KEY secret and NEON_PROJECT_ID variable should already be available from the GitHub integration setup.

   note

   It's important to understand the roles of your GitHub secrets. The NEON_API_KEY (created by the integration) is used to manage your Neon project, like creating and deleting branches. The DATABASE_URL secret you just created points exclusively to your production database branch. The workflow uses this only after a PR is successfully merged to apply migrations, ensuring a safe separation from the ephemeral preview databases used during testing.

Understanding the workflow

The repository includes a GitHub Actions workflow file at .github/workflows/cypress.yml. This file automates the entire testing lifecycle for each pull request.

name: Cypress Tests

on:
  pull_request:
    branches: [main]
    types:
      - opened
      - reopened
      - synchronize
      - closed

# Ensures only the latest commit runs, preventing race conditions in concurrent PR updates
concurrency:
  group: ${{ github.workflow }}-${{ github.ref }}

jobs:
  setup:
    name: Setup
    timeout-minutes: 1
    runs-on: ubuntu-latest
    outputs:
      branch: ${{ steps.branch_name.outputs.current_branch }}
    steps:
      - name: Get branch name
        id: branch_name
        uses: tj-actions/branch-names@v8

  create_neon_branch_and_run_tests:
    name: Create Neon Branch and Run Cypress Tests
    needs: setup
    permissions:
      contents: read
      pull-requests: write
    if: |
      github.event_name == 'pull_request' && (
      github.event.action == 'synchronize' || github.event.action == 'opened' || github.event.action == 'reopened')
    runs-on: ubuntu-latest
    steps:
      - name: Create Neon Branch
        id: create_neon_branch
        uses: neondatabase/create-branch-action@v6
        with:
          project_id: ${{ vars.NEON_PROJECT_ID }}
          branch_name: preview/pr-${{ github.event.number }}-${{ needs.setup.outputs.branch }}
          api_key: ${{ secrets.NEON_API_KEY }}
          role: neondb_owner

      - uses: actions/checkout@v4
      - uses: actions/setup-node@v4
        with:
          node-version: lts/*

      - name: Install dependencies
        run: npm ci

      - name: Generate drizzle migrations
        run: npm run db:generate

      - name: Apply drizzle migrations
        run: npm run db:migrate
        env:
          DATABASE_URL: '${{ steps.create_neon_branch.outputs.db_url_pooled }}'

      - name: Run Cypress tests
        uses: cypress-io/github-action@v6
        with:
          build: npm run build
          start: npm start
          browser: chrome
        env:
          NODE_ENV: production
          DATABASE_URL: '${{ steps.create_neon_branch.outputs.db_url_pooled }}'

      - uses: actions/upload-artifact@v4
        if: failure()
        with:
          name: cypress-screenshots
          path: cypress/screenshots
          retention-days: 7

      - uses: actions/upload-artifact@v4
        if: always()
        with:
          name: cypress-videos
          path: cypress/videos
          retention-days: 30

      - name: Post Schema Diff Comment to PR
        uses: neondatabase/schema-diff-action@v1
        with:
          project_id: ${{ vars.NEON_PROJECT_ID }}
          compare_branch: preview/pr-${{ github.event.number }}-${{ needs.setup.outputs.branch }}
          api_key: ${{ secrets.NEON_API_KEY }}

  delete_neon_branch:
    name: Delete Neon Branch and Apply Migrations on Production branch
    needs: setup
    if: github.event_name == 'pull_request' && github.event.action == 'closed'
    runs-on: ubuntu-latest
    steps:
      - name: Delete Neon Branch
        uses: neondatabase/delete-branch-action@v3
        with:
          project_id: ${{ vars.NEON_PROJECT_ID }}
          branch: preview/pr-${{ github.event.number }}-${{ needs.setup.outputs.branch }}
          api_key: ${{ secrets.NEON_API_KEY }}

      - name: Checkout
        if: github.event.pull_request.merged == true
        uses: actions/checkout@v4

      - name: Apply migrations to production
        if: github.event.pull_request.merged == true
        run: |
          npm install
          npm run db:generate
          npm run db:migrate
        env:
          DATABASE_URL: '${{ secrets.DATABASE_URL }}'

The workflow is divided into three jobs:

• Setup: Gets the current Git branch name to use in naming the Neon database branch.
• Create branch & test: This job runs when a pull request is opened or updated. It creates a database branch, runs migrations, and executes the Cypress tests.
• Cleanup: This job runs when the pull request is closed. It deletes the temporary database branch and applies migrations to production branch if the PR was merged.

Create branch & test job

1. Branch Creation: Uses Neon's create-branch-action to create a database branch named preview/pr-{number}-{branch_name}, which inherits the schema and data from your primary branch.
2. Migration and Build: Installs dependencies, runs schema migrations against the new branch, and builds the Next.js application. The branch-specific connection string from the create-branch-action output is used for these steps.
3. Cypress Test Execution: The official cypress-io/github-action is used to run the tests. The wait-on parameter ensures that tests only begin after the application server is responding. Videos of the test runs are always uploaded as artifacts, and screenshots are uploaded if any tests fail.
4. Schema Diff: Neon's schema-diff-action compares the schema of the preview branch against the parent branch and posts a summary comment to the pull request, making database changes easy to review.

Cleanup job

1. Branch Deletion: When the pull request is closed, the delete-branch-action removes the temporary database branch to free up resources.
2. Apply Migrations to Production: If the pull request was merged, the job checks out the code and applies any new migrations to the production database branch using the DATABASE_URL secret.

Test the workflow

To see the pipeline in action, you can introduce a schema change, update the application's UI, and add a new test.

1. Create a new feature branch in your local repository:

   git checkout -b feature/add-created-at

2. Modify the database schema in app/db/schema.ts by adding a created_at column:

   import { pgTable, text, bigint, boolean, timestamp } from 'drizzle-orm/pg-core';

   export const todos = pgTable('todos', {
     id: bigint('id', { mode: 'bigint' }).primaryKey().generatedByDefaultAsIdentity(),
     task: text('task').notNull(),
     isComplete: boolean('is_complete').notNull().default(false),
     createdAt: timestamp('created_at').notNull().defaultNow(),
   });

   export type Todo = typeof todos.$inferSelect;

3. Update the UI component in app/todos.tsx to display the new timestamp:

   // app/todos.tsx
   // ... inside the TodoList component's map function
   <li key={todo.id.toString()} className="flex items-center justify-between border-b py-2">
     <div>
       <span className={todo.isComplete ? 'text-gray-400 line-through' : ''}>{todo.task}</span>
       <p className="text-gray-500 text-xs">Created: {todo.createdAt.toLocaleDateString()}</p>
     </div>
     <div className="flex gap-2">{/* ... forms for toggle and delete */}</div>
   </li>

4. Add a new Cypress test in cypress/e2e/todos.cy.ts to verify the timestamp is displayed correctly:

   // cypress/e2e/todos.cy.ts
   // ... inside the "Todo App" describe block
   it('should display a creation timestamp for a new todo', () => {
     const todoText = 'Check the timestamp';
     cy.get('input[name="task"]').type(todoText);
     cy.contains('button', 'Add').click();

     // Check that the todo text is visible
     cy.contains(todoText).should('be.visible');

     // Verify the creation date is displayed
     const expectedDate = new Date().toLocaleDateString('en-US', {
       month: '2-digit',
       day: '2-digit',
       year: 'numeric',
     });
     cy.contains(`Created: ${expectedDate}`).should('be.visible');
   });

5. Commit your changes and push the branch to GitHub:

   git add .
   git commit -m "feat: add and display created_at timestamp for todos"
   git push origin feature/add-created-at

6. Open a pull request on GitHub.

When the pull request is opened, the GitHub Action will start automatically. You can monitor its progress in the "Actions" tab. The workflow will create a database branch, run tests, and post a schema diff. Once merged, it will update your production database and clean up the temporary resources.

The pull request should now show a comment summarizing the schema changes:

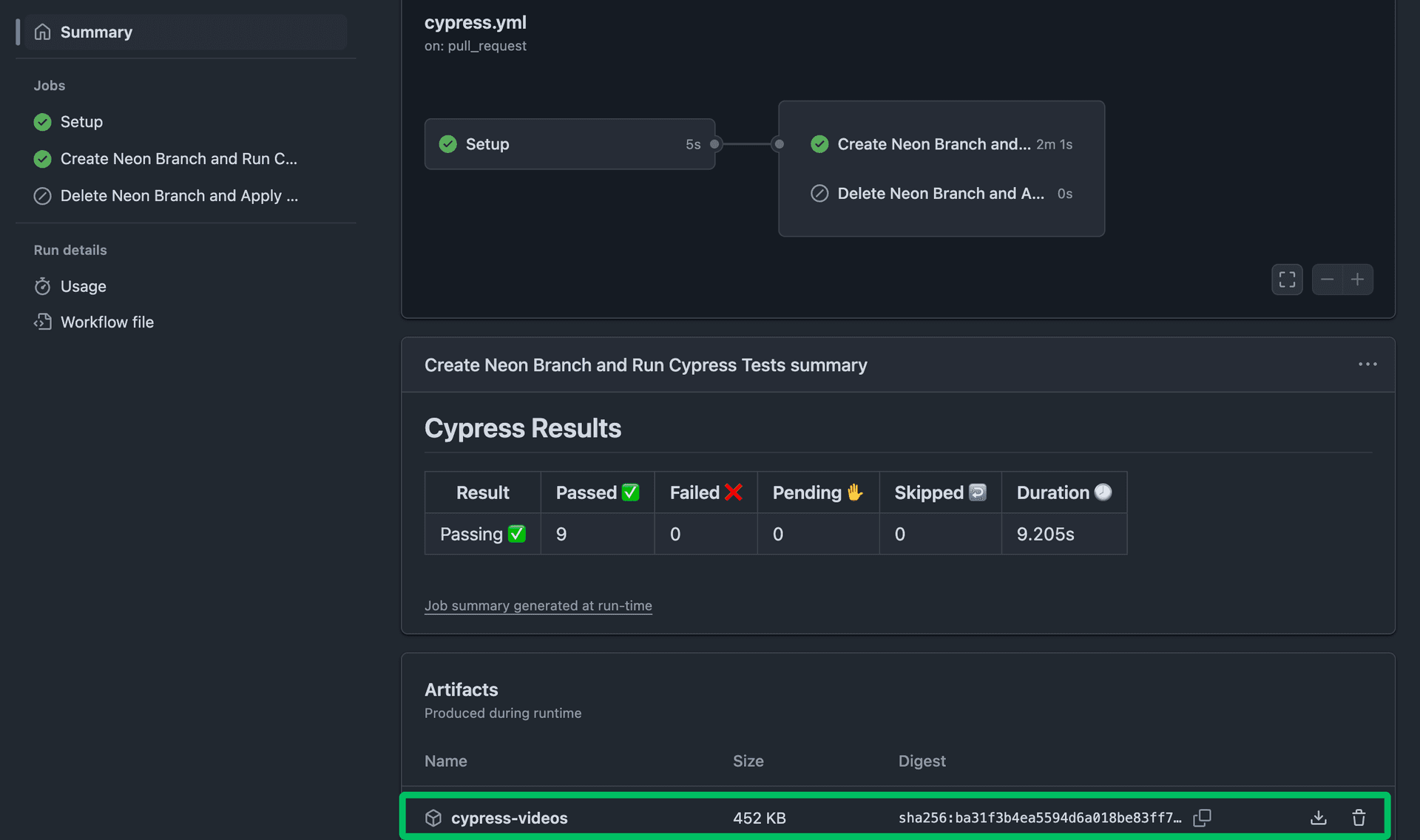

Additionally, GitHub Actions uploads Cypress test artifacts. Videos are recorded for every test run, while screenshots are uploaded only if tests fail. You can download these from the Actions tab to help diagnose issues.

Source code

The complete source code for this example is available on GitHub.

• Neon Branching with Cypress Example

  An example project for integrating Neon branching with Cypress and GitHub Actions for E2E testing.

Conclusion

You have now configured a CI/CD pipeline that uses Neon branching to create isolated databases for your Cypress tests. This setup ensures that tests for new features run against the correct schema without interfering with a shared staging environment.

In a similar way, this concept can be extended to Cypress component tests to provide an isolated database for any components that fetch their own data. This approach can be easily adapted to any other E2E testing framework, such as Playwright or Selenium, by modifying the test execution steps in the GitHub Actions workflow while keeping the Neon branching logic intact.

Resources

• Neon Database Branching
• Neon GitHub Integration
• Cypress Documentation
• GitHub Actions Documentation
• Automated E2E Testing with Neon Branching and Playwright
• Cypress GitHub Action
