Scale your Next.js application with Drizzle ORM and Lakebase Postgres read replicas

Learn how to scale Next.js applications with Drizzle ORM's withReplicas() function and Lakebase Postgres read replicas on Neon

View as Markdown

Neon read replicas are independent read-only computes that read from the same storage as your primary compute. Sending read queries to replicas takes load off the primary compute, which helps read-heavy applications.

Because replicas share storage with the primary compute, adding one doesn't duplicate your data or add storage costs. You pay only for the replica's compute usage.

This guide shows how to use Neon read replicas to scale Next.js applications using Drizzle ORM. You'll configure your Drizzle database client to send reads to a replica and writes to the primary compute.

Prerequisites

  • A Neon account and a project. If you don't have one, sign up and create a project by following Sign up.
  • Basic knowledge of Next.js and TypeScript
  • Node.js and npm installed on your local machine

Build the polling app

To demonstrate how to use Neon read replicas with Drizzle in Next.js, we'll build a simple polling application that uses a Neon database. We'll then update the application to use a read replica for read operations.

Part 1: Build the initial polling app with a single database

Set up the project

Create a new Next.js project with all the default options:

npx create-next-app@latest polling-app
cd polling-app

Install required packages

Install Drizzle ORM and the Postgres driver:

npm install drizzle-orm pg dotenv
npm install -D @types/pg drizzle-kit

Create the database schema

Create a new file db/schema.ts:

import { pgTable, serial, text } from 'drizzle-orm/pg-core';

export const pollTable = pgTable('votes', {
  id: serial('id').primaryKey(),
  option: text('option').notNull(),
  ipAddress: text('ip_address').notNull(),
});

This code defines the schema for our votes table. It has an auto-incrementing id, an option field for the vote choice, and an ipAddress field to track unique voters.

Set up the Drizzle client

Create a new file db/drizzle.ts:

import { drizzle } from 'drizzle-orm/node-postgres';
import { Pool } from 'pg';
import 'dotenv/config';

const pool = new Pool({
  connectionString: process.env.DATABASE_URL,
});

export const db = drizzle(pool);

This code sets up the Drizzle ORM client. It creates a connection pool using the DATABASE_URL from our environment variables and initializes Drizzle with this pool.

Update.env

Add the Neon database connection string:

DATABASE_URL=postgres://your-username:your-password@your-neon-host/your-database

This environment variable stores the connection string for your Neon database.

Set up migrations and create tables

Add the following scripts to your package.json:

{
  "scripts": {
    ...
    "migration:generate": "drizzle-kit generate",
    "migration:migrate": "drizzle-kit migrate"
  }
}

These scripts allow you to generate and run database migrations using Drizzle Kit.

Create a new file drizzle.config.ts in the root of your project:

import type { Config } from 'drizzle-kit';
import 'dotenv/config';

export default {
  schema: './db/schema.ts',
  out: './db/migrations',
  dialect: 'postgresql',
  dbCredentials: {
    url: process.env.DATABASE_URL!,
  },
} satisfies Config;

This configuration file tells Drizzle Kit where to find your schema, where to output migrations, and which database to connect to.

To generate your first migration based on your schema, run:

npm run migration:generate

To apply the migration and create the table in your Neon database, run:

npm run migration:migrate

Create the API routes

Create a new file app/api/vote/route.ts:

import { db } from '@/db/drizzle';
import { pollTable } from '@/db/schema';
import { NextRequest, NextResponse } from 'next/server';
import { eq, sql } from 'drizzle-orm';

export async function POST(req: NextRequest) {
  const ipAddress = req.headers.get('x-forwarded-for');

  if (ipAddress == null) {
    return NextResponse.json({ message: 'IP address not found!' });
  }

  const { option } = await req.json();

  const existingVote = await db
    .select()
    .from(pollTable)
    .where(eq(pollTable.ipAddress, ipAddress))
    .execute();

  if (existingVote.length > 0) {
    return NextResponse.json({ message: 'You have already voted!' });
  }

  // Insert a new vote
  await db.insert(pollTable).values({
    option: option,
    ipAddress: ipAddress,
  });

  return NextResponse.json({ message: 'Vote submitted successfully!' });
}

export async function GET() {
  const options = await db
    .select({
      count: sql<number>`cast(count(*) as int)`,
      option: pollTable.option,
    })
    .from(pollTable)
    .groupBy(pollTable.option)
    .execute();
  return NextResponse.json(options);
}

This file defines two API routes:

  • The POST route handles new votes, checking for existing votes from the same IP and inserting new votes.
  • The GET route retrieves the current vote counts for each option.

Create the frontend

Add shadcn-ui to the project for styling:

npx shadcn@latest init -d
npx shadcn@latest add button card

Update app/page.tsx:

"use client"

import { useState, useEffect } from "react"
import { Button } from "@/components/ui/button"
import { Card, CardContent, CardHeader, CardTitle } from "@/components/ui/card"

export default function Component() {
  const [votes, setVotes] = useState({ Python: 0, JavaScript: 0 });
  const [loading, setLoading] = useState(false);

  useEffect(() => {
    // Fetch the current poll results when the component mounts
    const fetchPollResults = async () => {
      try {
        const response = await fetch("/api/vote");
        const data = await response.json();

        setVotes({
          Python: data.find((option: { option: string }) => option.option === "Python")?.count || 0,
          JavaScript: data.find((option: { option: string }) => option.option === "JavaScript")?.count || 0,
        });

      } catch (error) {
        console.error("Error fetching poll results:", error)
      }
    }

    fetchPollResults()
  }, [])

  const handleVote = async (option: "Python" | "JavaScript") => {
    setLoading(true)
    try {
      const response = await fetch("/api/vote", {
        method: "POST",
        headers: {
          "Content-Type": "application/JavaScripton",
        },
        body: JSON.stringify({ option }),
      })

      if (!response.ok) {
        throw new Error("Error submitting vote")
      }

      const data = await response.json()
      if (data.message === "Vote submitted successfully!") {
        setVotes((prevVotes) => ({
          ...prevVotes,
          [option]: prevVotes[option] + 1,
        }))
      } else {
        alert(data.message)
      }

    } catch (error) {
      console.error("Error submitting vote:", error)
    } finally {
      setLoading(false)
    }
  }

  const totalVotes = votes.Python + votes.JavaScript
  const PythonPercentage = totalVotes ? (votes.Python / totalVotes) * 100 : 0
  const JavaScriptPercentage = totalVotes ? (votes.JavaScript / totalVotes) * 100 : 0

  return (
    <div className="flex items-center justify-center min-h-screen">
      <Card className="w-full max-w-md mx-auto bg-gradient-to-br from-purple-50 to-indigo-50 dark:from-gray-900 dark:to-gray-800 shadow-lg">
        <CardHeader className="pb-2">
          <CardTitle className="text-3xl font-bold text-center text-purple-700 dark:text-purple-300">
            What is your favorite programming language?
          </CardTitle>
        </CardHeader>
        <CardContent className="space-y-6 p-6">
          <div className="space-y-4">
            <Button
              onClick={() => handleVote("Python")}
              className="w-full justify-between text-lg font-semibold py-6 bg-gradient-to-r from-purple-500 to-indigo-500 hover:from-purple-600 hover:to-indigo-600 transition-all duration-300"
              disabled={loading}
            >
              <span>Python</span>
              <span className="bg-white text-purple-700 px-3 py-1 rounded-full text-sm">
                {votes.Python}
              </span>
            </Button>
            <div className="h-3 bg-gray-200 rounded-full overflow-hidden dark:bg-gray-700">
              <div
                className="h-full bg-gradient-to-r from-purple-500 to-indigo-500 transition-all duration-300 ease-in-out"
                style={{ width: `${PythonPercentage}%` }}
              />
            </div>
          </div>
          <div className="space-y-4">
            <Button
              onClick={() => handleVote("JavaScript")}
              className="w-full justify-between text-lg font-semibold py-6 bg-gradient-to-r from-indigo-500 to-purple-500 hover:from-indigo-600 hover:to-purple-600 transition-all duration-300"
              disabled={loading}
            >
              <span>JavaScript</span>
              <span className="bg-white text-indigo-700 px-3 py-1 rounded-full text-sm">
                {votes.JavaScript}
              </span>
            </Button>
            <div className="h-3 bg-gray-200 rounded-full overflow-hidden dark:bg-gray-700">
              <div
                className="h-full bg-gradient-to-r from-indigo-500 to-purple-500 transition-all duration-300 ease-in-out"
                style={{ width: `${JavaScriptPercentage}%` }}
              />
            </div>
          </div>
          <p className="text-center text-sm font-medium text-gray-600 dark:text-gray-300 mt-4">
            Total votes: {totalVotes}
          </p>
        </CardContent>
      </Card>
    </div>
  )
}

This component creates a user interface for the polling app. It includes:

  • State management for votes and loading status
  • An effect hook to fetch initial poll results
  • A function to handle new votes
  • A UI with buttons for voting and progress bars to show results

Run the application

npm run dev

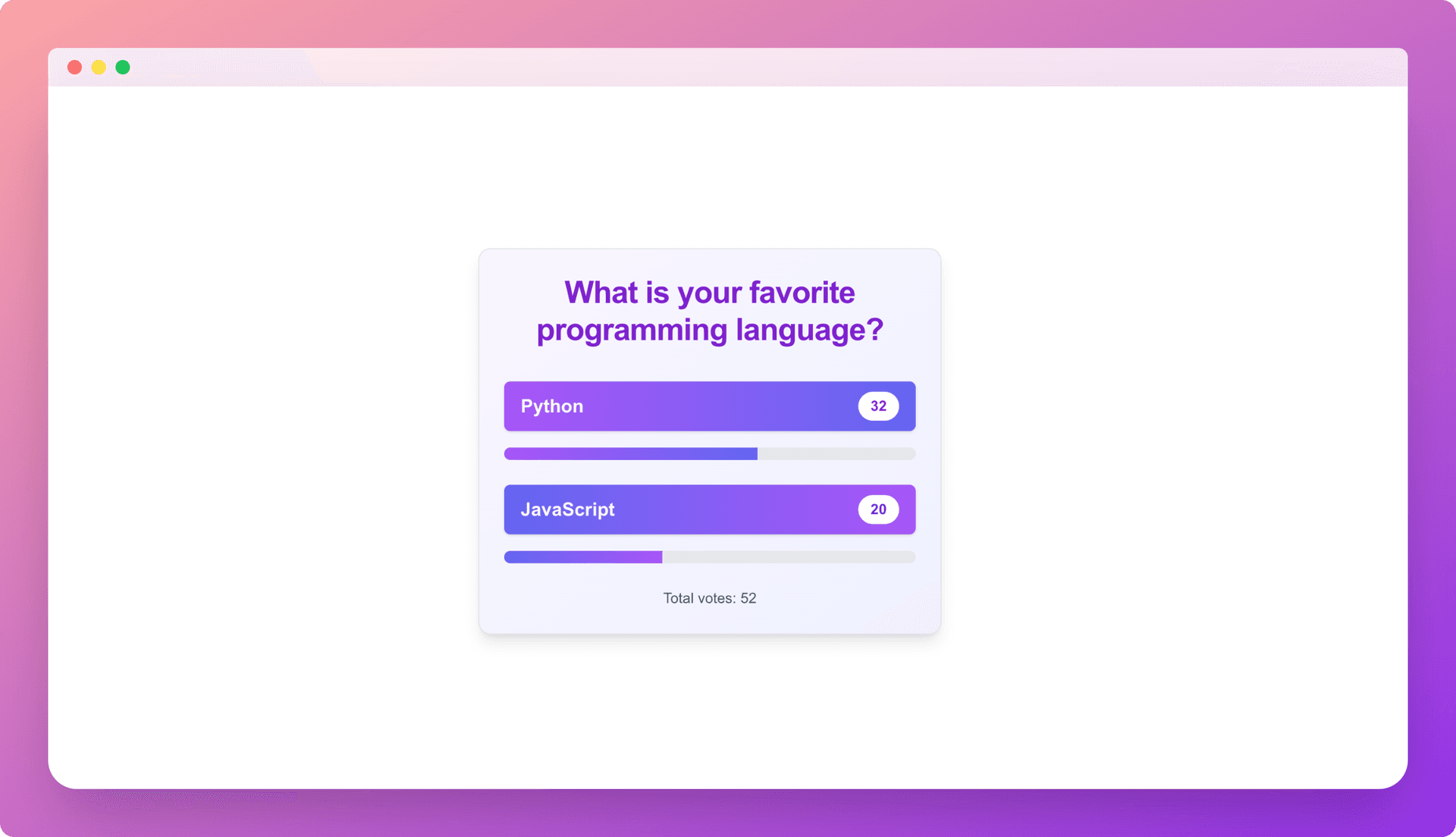

Polling app

Visit http://localhost:3000 to test the polling app.

Part 2: Use a read replica for read-only operations

Create a read replica on Neon

To create a read replica:

  1. In the Neon Console, select your branch from the BRANCH selector.
  2. Under Postgres database, select Computes.
  3. Click Add Read Replica.
  4. On the Add new compute dialog, select Read replica as the Compute type.
  5. Specify the Compute size settings options. You can configure a Fixed Size compute with a specific amount of RAM (the default) or enable autoscaling by configuring a minimum and maximum compute size. You can also configure the Suspend compute after inactivity setting, which is the amount of idle time after which your read replica compute is automatically suspended. The default setting is 5 minutes.

    note

    The compute size configuration determines the processing power of your database. More memory means more processing power but also higher compute costs. For information about compute costs, see Billing metrics.

  6. When you finish making selections, click Create.

Your read replica compute is provisioned and appears on the Computes tab under Postgres database.

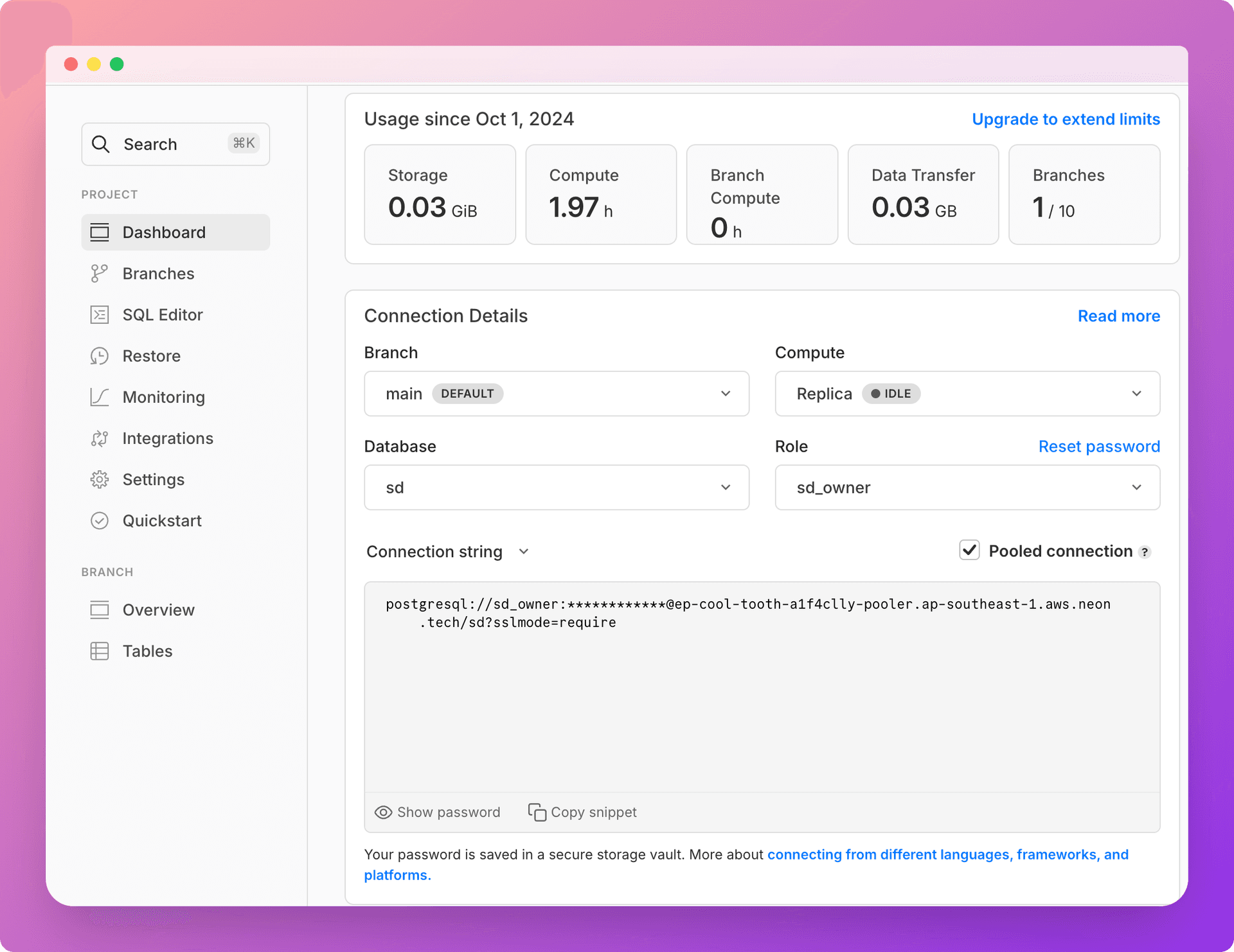

To get the read replica connection string, click the Connect button in the Console nav. On the Connect to your branch modal, select the branch where you created the replica, and under Compute, select the Replica:

Read replica connection string

Update the Drizzle client

Modify db/drizzle.ts:

import { drizzle } from 'drizzle-orm/node-postgres';
import { withReplicas } from 'drizzle-orm/pg-core';
import { Pool } from 'pg';
import 'dotenv/config';

const primaryDb = drizzle(
  new Pool({
    connectionString: process.env.DATABASE_URL!,
  })
);
const read = drizzle(
  new Pool({
    connectionString: process.env.READ_REPLICA_URL!,
  })
);

export const db = withReplicas(primaryDb, [read]);

This setup uses Drizzle's withReplicas function to create a single database client that can handle both primary and read replica connections. It automatically routes read queries to the read replica and write queries to the primary database.

Update.env

Add the read replica connection string:

DATABASE_URL=postgres://your-username:your-password@your-neon-primary-host/your-database
READ_REPLICA_URL=postgres://your-username:your-password@your-neon-read-replica-host/your-database

These environment variables store the connection strings for both your primary database and the read replica.

note

You can also pass an array of read replica connection strings if you want to use multiple read replicas. Neon supports adding multiple read replicas to a database branch.

const primaryDb = drizzle(
  new Pool({
    connectionString: process.env.DATABASE_URL,
  })
);
const read1 = drizzle(
  new Pool({
    connectionString: process.env.READ_REPLICA_URL_1,
  })
);
const read2 = drizzle(
  new Pool({
    connectionString: process.env.READ_REPLICA_URL_2,
  })
);
const db = withReplicas(primaryDb, [read1, read2]);

If you want to read from the primary compute and bypass read replicas, you can use the $primary() key:

const posts = await db.$primary().post.findMany();

You can find the source code for the application described in this guide on GitHub.

Conclusion

You built a Next.js polling app that uses Drizzle's withReplicas() to send reads to a Neon read replica and writes to the primary compute, without managing separate connections in your application code. As a next step, monitor replica load and add more replicas to the array if your read traffic grows.
